Resonant scanner : RS01
Main features : High precision & high optical quality & high reliability
- Fixed Scanning frequency in the range 410 - 450Hz
- Outstanding frequency stability (± 2%)
- Optical Scan Angle 32°
- Aluminum coating (other metallic and non-metallic coating on request)
- Scratch&Dig 60-40 ( 10-5 on request)
- Broad operating temperature range
- High mirror quality
- Overall dimensions 13 x 14 x 12 mm (Length, Width, Thickness)
- Flatness λ/6 (without defocus) - λ/10 (on request)
- Low noise
- High reliability
- Flexible design for multiple mirror shapes
- Immunity to external vibrations and shocks
- High accuracy of the scan line
- Custom design frequency, mirror size, scan angle independently selectable.
|

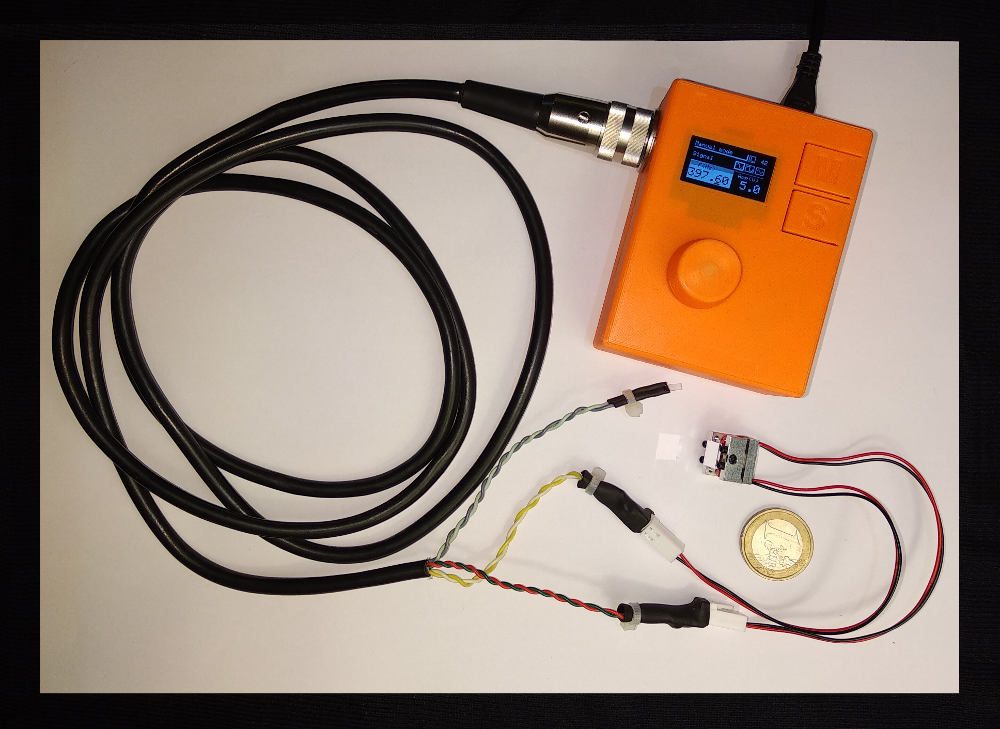

R&D kit
|
Applications
- Laser scanners
- LIDAR
- Printers
- 3D Printers
- 2D/3D Object scanning, image analysis
- Biomedical imaging
- Confocal microscopy, optical coherence tomography (OCT), optical coherence microscopy (OCM)
- Barcode scanners
- Quality inspection
- Laser engraving/printing
- Adaptive optics
- Intra cavity Q-Switch
